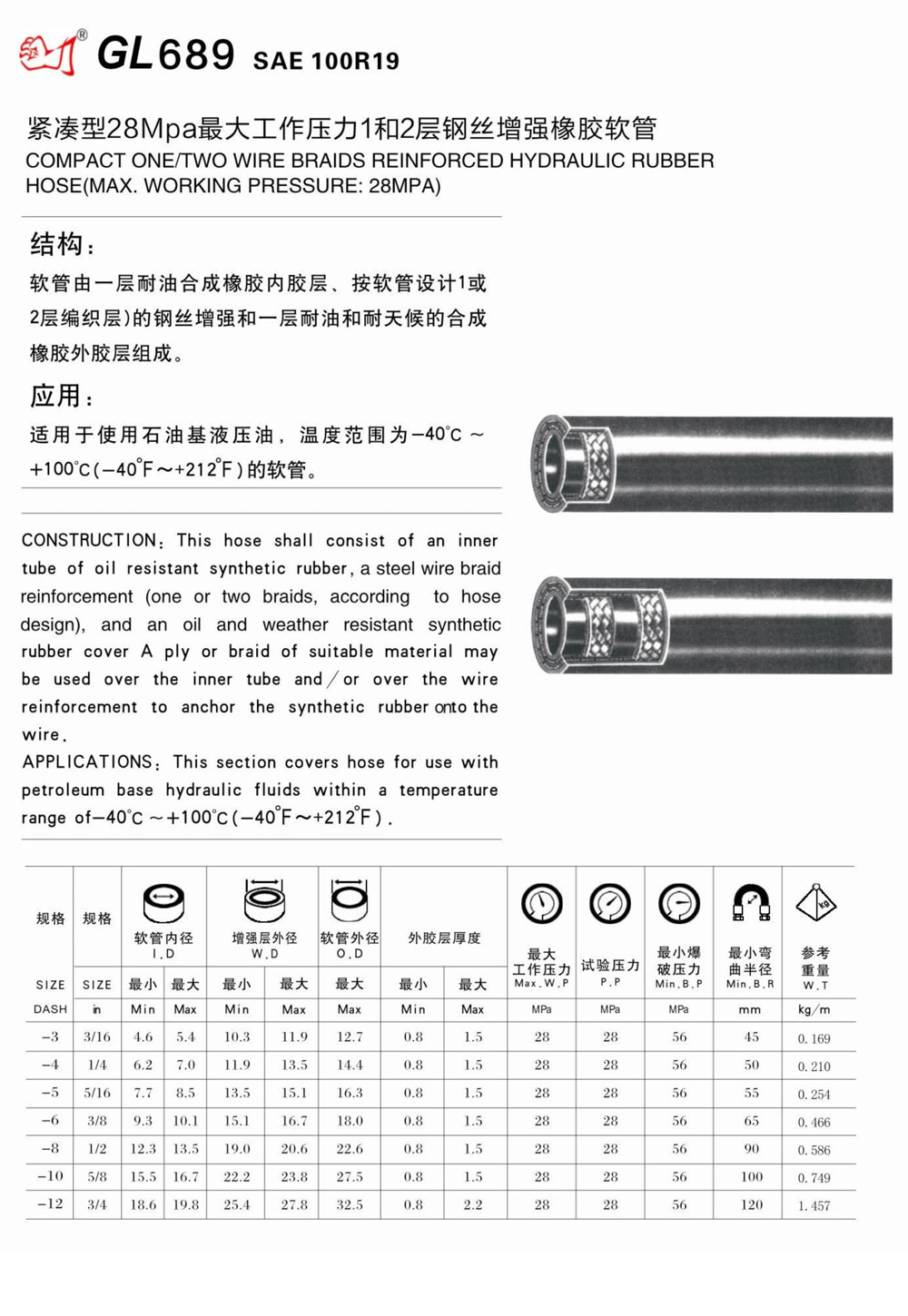

GL689 SAE 100R19 緊湊型28Mpa大工作壓力1和2層鋼絲增強橡膠軟管
GL689 SAE 100R19
緊湊型28Mpa最大工作壓力4和2層鋼絲增強橡膠軟管
COMPACT ONE/TWO WIRE BRAIDS REINFORCED HYDRAULIC RUBBER HOSE(MAX. WORKING PRESSURE: 28MPA)
結構：

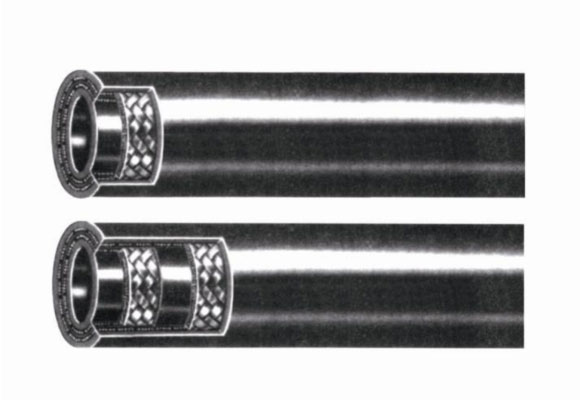

軟管由一層耐油合成橡膠內膠層、按軟管設計1或 2層編織層)的鋼絲增強和一層耐油和耐天候的合成 橡膠外膠層組成。
應用：
適用于使用石油基液壓油，溫度范圍為-40°C~ +100°C(-40°F~+212°F)的軟管。
CONSTRUCTION： This hose shall consist of " inner tube of oil resistant synthetic rubber, a steel wire braid reinforcement (one or two braids, according to hose desig n), and an oil and weather resista nt synthetic rubber cover A ply or braid of suitable material may be used over the inner tube and / or over the wire reinforcement to anchor the synthetic rubber onto the wire.
APPLICATIONS： This section covers hose for use with petroleum base hydraulic fluids within a temperature range of-40°C ?+100°C(-40°F~+212°F).
